UT1325-MS 1325 Stone CNC Engraving Cutting Machine For Granite, Marble
Rotary Device optional. A rotary device includes a fixed body and a shaft. As 4th axis of CNC Router, it could work instead of X or Y axis for column Processing, such as chair jamb, stair jamb, Roman column, pillar etc. The column diameter it fixes could be from 10mm to 400mm, material Could be wood, marble, foam etc.
Applications and Materials

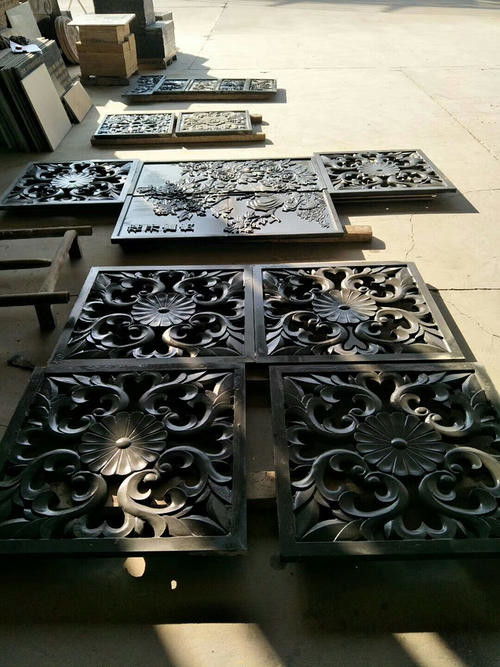

Stone Industry: Marble, granite,bluestone,sand stone, etc
| XYZ Travel Size | 1350X2550X200mm |
| Max Working Size | 1300X2500X150mm |
| Table Size | 1400X2500mm |
| Transmission Type | XY rack/Z ball screw |
| Guide Rail | Linear Guide |
| Table Type | T-Slot |
| Spindle Power | China water cool spindle 3.0KW/4.4KW |
| pindle Speed | 24000rpm |
| Max Travel Speed | 20000mm/min |
| Max Work Speed | 12000mm/min |
| Motor | Step/servo motor |
| Work Voltage | AC380V 50HZ |
| Controller System | Ncstudio/DSP |
| Processing Accuracy | ±0.05mm |
| Repeat Positioning Accuracy | ±0.01mm |
| File Format | G code or PLT |
| Overall Weight | 1800KG |
| Overall Dimension | 1900X3100X1600mm |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Equipped with automatically lubrication system. Easy periodic maintenance with lightly pressing
4. Professional water cooling spindle specially for stone engraving
5. Equipped with water recycle cooling system with water tank
6. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality
7. Main configurations adopts imported accessories which will ensure the overall running performance
